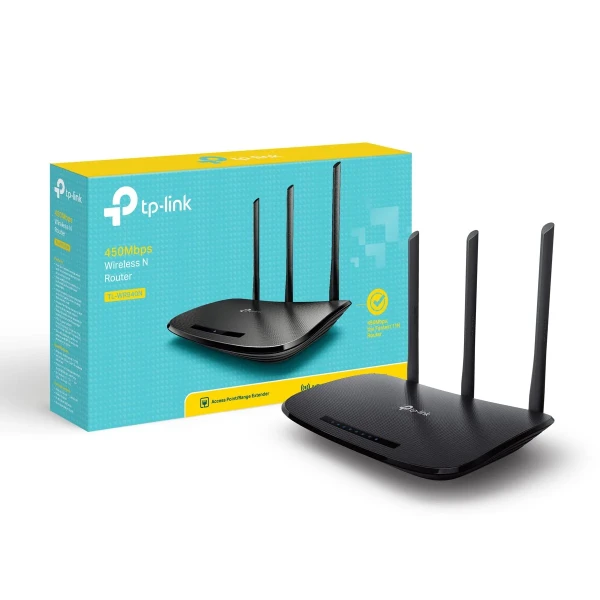

TP-Link TL-WR940N 450Mbps Wireless WiFi Router

The TP-Link TL-WR940N 450Mbps Wireless N Router is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR940N gives users wireless performance at up to 450Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

Features.

Hardware Features.

Interface: 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button: Wireless On/Off Button,WPS/Reset Button,
Power On/Off Button
External Power Supply: 12VDC / 1A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ): 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna: 3*5dBi Fixed Omni Directional Antenna

Wireless Features.

Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power: CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Modes: Router Mode,
Range Extender(for V5 and later),
Access Point Mode (for V5 and later)
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Software Features.

Quality of Service: WMM, Bandwidth Control
WAN Type: Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management: Access Control
Local Management
Remote Management
DHCP: Server, Client, DHCP Client List,
Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, Comex, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols: Support IPv4
Guest Network: 2.4GHz Guest Network×1

Other Features.

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
